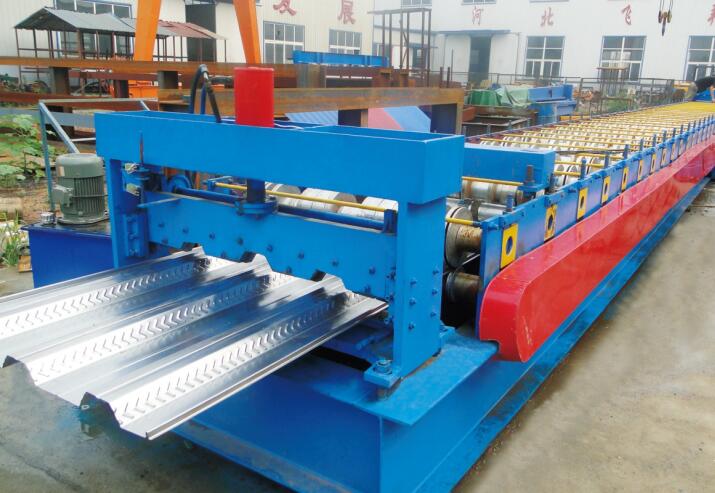

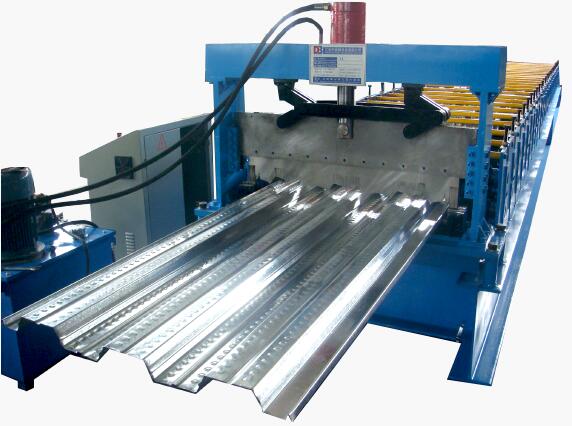

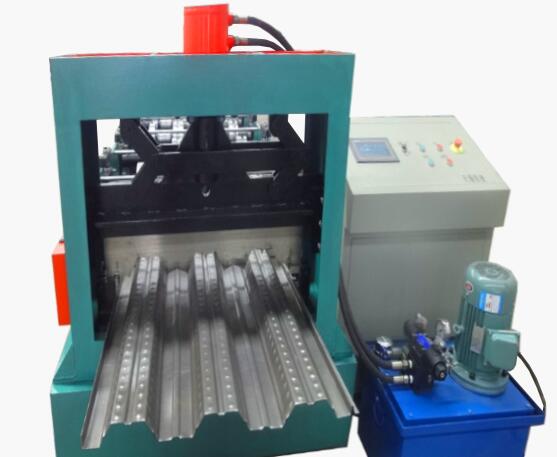

Zhongtuo New Products Floor decking roll forming machine roof steel machine
Floor deck machine used for floor panel, it has high wave crest, high strength these features. And also automatic production, it has low cost, good adhesiveness advantages. The product used in large workshop, roof construction and so on.The whole equipment includes feeding platform, roll forming, automatic shearing device, hydraulic system, computer control system.
The suitable material can be color steel ,aluminum sheet and galvanized sheet.
Technical
parameters:
Name of commodity
& specification
Floor Deck roll
forming machine
Main motor power
18.5kw, 3 phase
Hydraulic motor
power
15kw
Hydraulic
Pressure
18-20MPa
Voltage
380V /3phase/ 50
HZ (or as your requirement)
Control System
PLC Delta
Inverter
Main Frame
450mm H-Beam
Backboard
Thickness
22mm
Chain Size
66mm
Feeding Material
color steel coils
Feeding Thickness
0.3-0.8mm
Productivity
8-10m/min
Roll Station
24
Roller Diameter
95mm
Roller
material
45# steel
Cutter
material
Cr12 , quenched
Cr-Plating Size
0.05mm
Overall Size
13000×1200×1100mm
